FF.GI srl produces PTFE fittings gaskets according to DIN 11851 for industries like wine, dairy, chemical / pharmaceutical, confectionery, and food in general.
Application Sectors

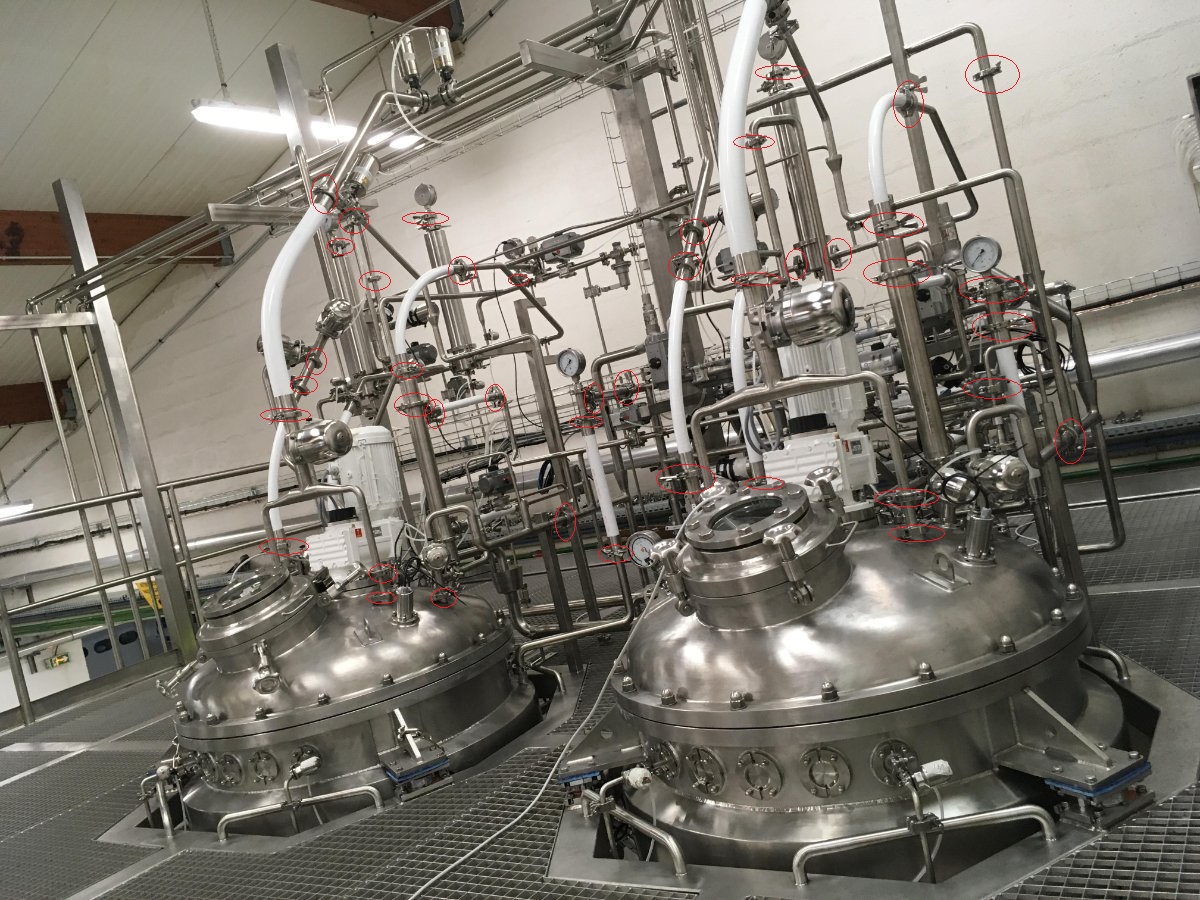

The main sectors are the food, cosmetics and pharmaceutical industries, where they are used both in laboratory equipment and in production lines. These sectors are subject to strict cleaning, sanitization and sterilization requirements, which is why TRI-CLAMP connections are the ideal choice, ensuring easy cleaning and quick gasket replacement.
TRI-CLAMP gaskets overview
Flon-Chem® Aseptic Line
Use of Tri-Clamp Gaskets
Materials
Flon-Chem® 1000
100% FVirgin PTFE
Flon-Chem® 1000 is a pure virgin PTFE, approved for food contact.
Flon-Chem® 1121
100% “premium grade” virgin PTFE
Flon-Chem® 1121 is a premium grade virgin PTFE.
Flon-Chem® 1050 BLUE
Modified PTFE + hollow glass microspheres
Flon-Chem® 1050 BLUE is a modified PTFE reinforced with hollow glass microspheres.
Thanks to its high elasticity and elastic recovery, it provides excellent adaptability even at low tightening torques.

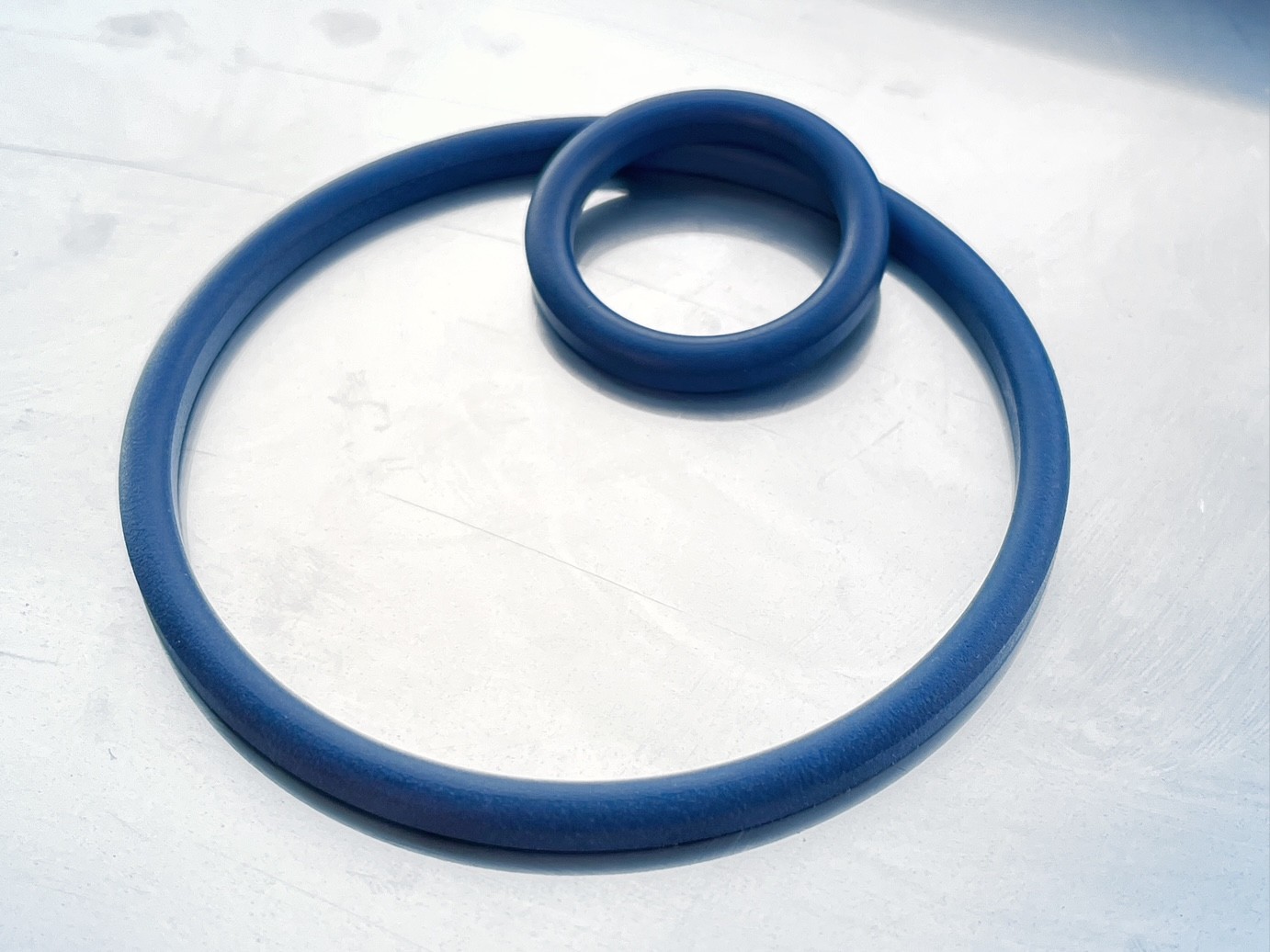

Flon-Chem® 1086 DETEK
Revolutionary BLUE PTFE
Flon-Chem® 1086 DETEK is a revolutionary virgin BLUE PTFE, detectable by optical scanner, X-rays and metal detection equipment — X-ray detectable!
Certifications
All the materials listed above are compliant with “food contact” certifications:
  • US legislation: FDA, Food and Drug Administration, department of Health and Human Services, Code of Federal Regulations 21 CFR Ch.1; USA regulations sections 177.1550 (a) (1) and (b) Perfluorocarbon Resins;
  • EU legislation: 1935/2004/CE 1895/2005/CE 10/2011/UE 2023/2006/UE (MOCA);
  • Italian legislation: D.M. 21/03/1973 DPR 777/82.

In addition to the above our FLON-CHEM 1121 has obtained the following certifications:

  • USP Class VI @ 121°C according to USP<87> and USP<88>;
  • 3-A Sanitary Standard for Multiple-Use Plastic Materials – No. 20-27.

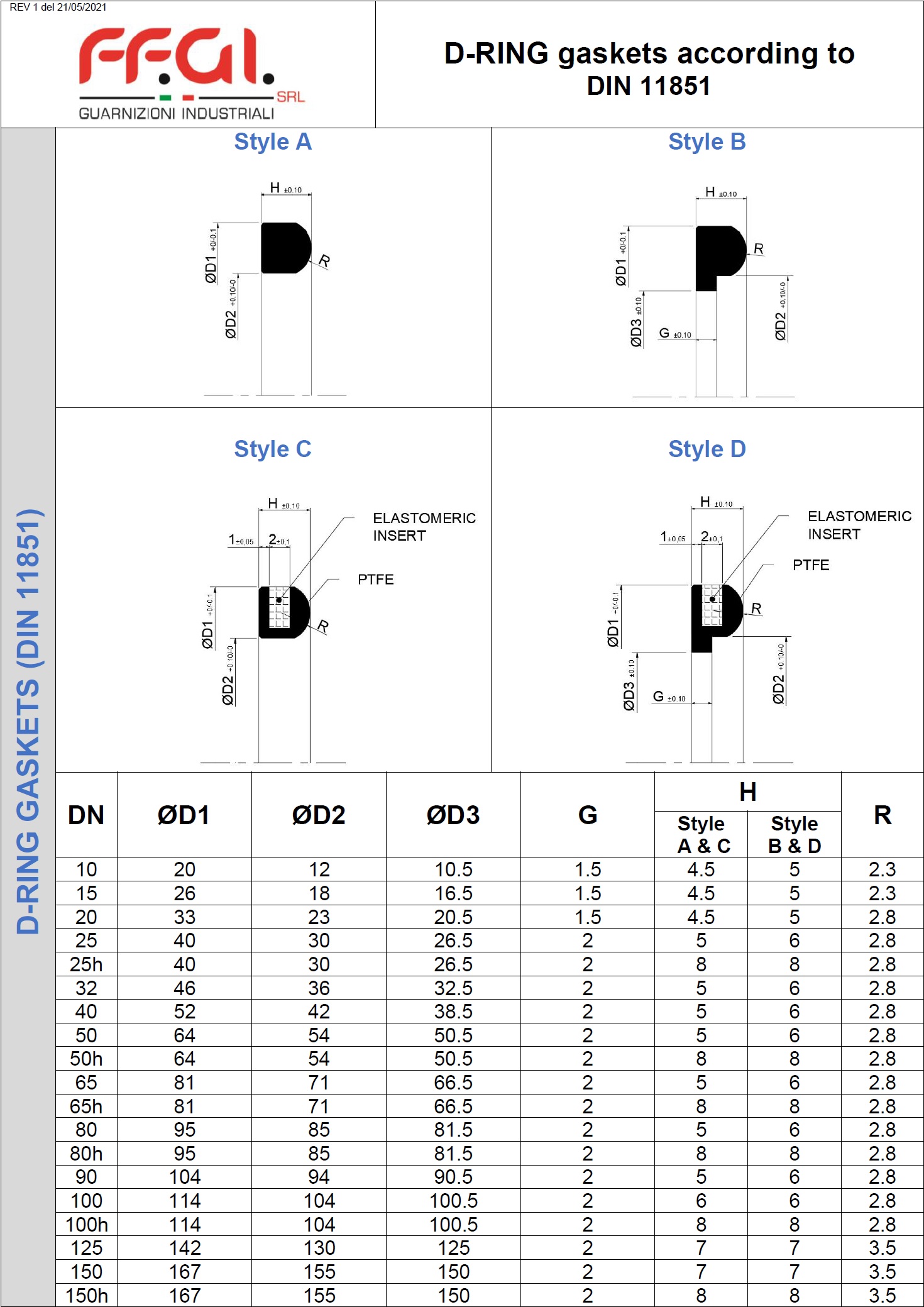

Dimensional standards and type

Special sizes are available upon request.

Discover our Brochure
FF.GI, your certified partner for industrial gaskets!
